Product Overview

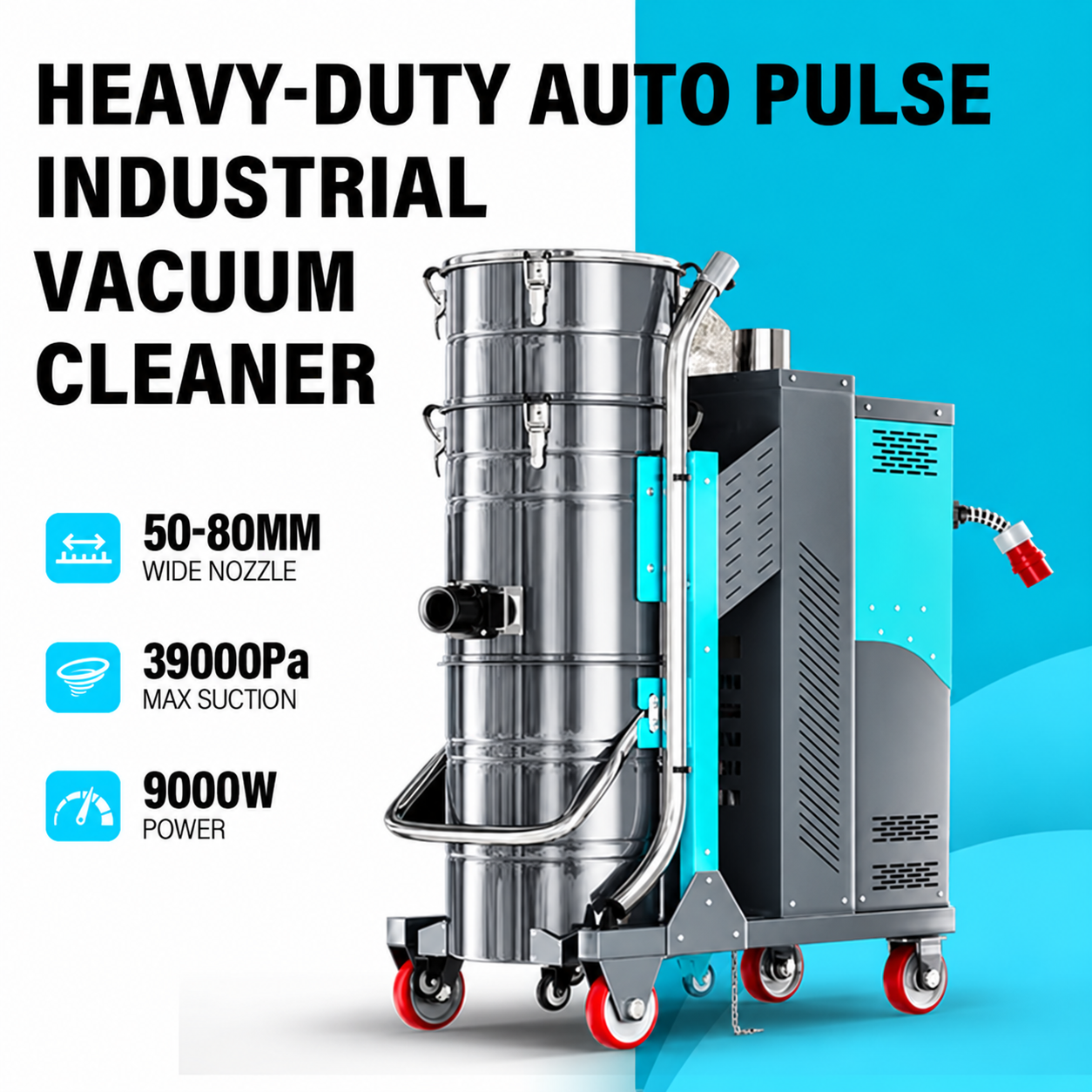

Fengyao HN9010P belongs to the MC automatic pulse series heavy-duty industrial vacuum cleaner, specially designed for heavy dust industrial applications. It adopts a 9.0KW three-phase high-pressure turbine motor with 39KPa strong vacuum power and a large 92L dust tank for long-time continuous dust collection.
This machine comes with an automatic pulse blowback cleaning system. You can freely set dust cleaning parameters, and the system runs automatic cyclic pulse vibration to remove dust attached to filter cartridges during operation. No need to stop the machine or manually clean filters, maintaining stable suction and greatly cutting maintenance work.
Built-in cyclone pre-separation structure separates coarse particles and metal debris in advance, reducing direct impact on filter cartridges and extending filter service life. The aluminum alloy turbine blower is fireproof, anti-corrosion and low-noise, capable of 24-hour non-stop running. It is fitted with pressure relief protection and waterproof industrial plug. Equipped with mobile casters for flexible movement in workshops. Ideal for machining grinding, shot blasting, foundry, stone processing and metallurgy industries to collect metal shavings, steel grit and bulk dry dust.
Key Features
Automatic Pulse Jet Dust Cleaning System Online pulse blowback cleaning with digitally adjustable pulse interval for automatic circulation. Customizable cleaning parameters to continuously remove dust buildup on filter cartridges. No manual filter disassembly or washing required during operation, improving production efficiency and lowering maintenance cost. Pressure relief device automatically releases pressure under excessive negative pressure to ensure stable equipment operation.
9KW Three-phase High Pressure Turbine Blower Pure copper motor with aluminum alloy housing, fire-resistant and anti-corrosion, low noise. Supports 24-hour continuous non-stop operation, delivers stable 39KPa strong suction to capture heavy metal shavings, steel grit and dense dust.
Cyclone Pre-separation + Polyester Membrane Filter Cartridge Dual Filtration Built-in cyclone separator uses centrifugal force to settle coarse dust and metal debris into the dust tank first, reducing direct wear on filter cartridges. Polyester fiber membrane filter cartridge features good acid & alkali resistance, high filtration efficiency and low resistance. It can be washed and reused repeatedly with outstanding wear resistance and long service life.
Heavy-duty Industrial Safety Design Waterproof industrial plug with high load capacity, prevents electric leakage and stays firmly connected. 92L large-capacity dust bin reduces frequent emptying. Mobile casters allow flexible movement for fixed machine matching or mobile workshop cleaning.
Main Specifications
| Item | Parameter |
|---|---|
| Model | HN9010P |
| Voltage | 380V/50Hz |
| Power | 9 kW |
| Suction | 39kPa |
| Filter Area | 8.5 ㎡ |
| Inlet Diameter | 50-80 mm |
| Tank Capacity | 92 L |
| Weight | 255 kg |
| Dimension | 1400*650*1600 mm |
Note: Dimensions are measured by hand. Slight deviation may exist, please refer to the actual product.
Product Advantages
- 24-hour continuous operation The three-phase pure copper turbine motor features an aluminum housing, excellent heat dissipation, low noise and fire & corrosion resistance. It supports nonstop operation day and night, perfectly matching continuous production lines without frequent machine shutdowns.
- Auto pulse back-blow filter cleaning Timed automatic pulse vibration cleaning system. Users can adjust the cycle interval freely. Dust stuck deep on filter media will be blown off automatically. No manual filter brushing or disassembly required. Stable suction is maintained all the time, cutting downtime and maintenance labor costs.
- Built-in cyclone pre-separation structure Heavy, coarse debris is separated by centrifugal force before entering the filter chamber. This protects filter cartridges from sharp metal chips and abrasive grit, slowing filter wear and reducing filter replacement frequency.
- Durable polyester membrane filter cartridges Membrane coated filters deliver high filtration efficiency with low resistance. They withstand weak acid and alkali, can be washed multiple times without damage. Great for capturing ultra-fine dust that ordinary filters struggle with.
- Reliable safety configuration Built-in pressure relief valve protects the vacuum under over negative pressure conditions. Waterproof, heavy-duty industrial plug resists loose connection and electric leakage. Robust mobile frame and wear-resistant casters suit rough factory floors.
- Large capacity stainless steel collection tank 92L tank holds a large volume of dust, chips and debris, so workers do not need to empty the bin frequently. The stainless steel tank is resistant to impact and corrosion for long service life.
Application Scenarios
Widely used in machining workshops, shot blasting workshops, metal grinding plants, foundries and other heavy industrial sites. Designed to collect iron scraps, steel grit, stone particles, glass fragments and large volumes of industrial dust. Perfect for continuous production line dust collection tasks.
Machining & CNC Shops Collect iron filings, aluminum shavings and cutting fluid mist residuals from CNC machine tools, milling machines and lathes. The 92L tank handles large volumes of fine metal swarf without frequent emptying.
Shot Blasting & Sandblasting Rooms Clean up steel grit, cast iron shot and residual abrasive after blasting operations. The cyclone separator pre-separates heavy grit particles, protecting the filter from abrasion and extending service life.
Grinding & Polishing Workshops Suction up fine metal dust, grinding dust and polishing powder from surface grinding, belt grinding and deburring stations. The auto pulse cleaning system keeps suction stable even when dealing with large amounts of fine dust.
Foundries & Casting Plants Remove foundry sand, casting flash, scale and burnt sand particles around shakeout machines, molding lines and pouring stations. Built to handle hot, heavy and abrasive debris in harsh foundry environments.
Glass Processing Industry Pick up broken glass fragments, glass powder and cullet from cutting, edging and drilling stations. The stainless steel tank and wear-resistant filter withstand sharp glass particles without damage.
Stone & Granite Processing Collect stone dust, granite chips and marble slurry remnants from cutting, grinding and polishing machines. The sealed cart design prevents fine stone dust from escaping back into the air.
Construction & Demolition Clean up cement dust, concrete fragments, sand and mortar residues from renovation and demolition sites. The robust wheeled cart moves easily across uneven workshop floors.
Food & Pharmaceutical Industry (dry dust) Suitable for collecting dry powder, granule residues and bulk dust in food processing, packaging and pharmaceutical production lines where dust-free environment is required. The washable filter meets basic hygiene requirements.
Woodworking & Furniture Factories Suction wood chips, sawdust and sanding dust from cutting, planing and sanding machines. The auto pulse system prevents clogging from fine wood dust.
Chemical & Powder Processing Collect non-corrosive dry powder, granule residues and bulk material spillages from mixing, filling and packaging stations. (Note: for corrosive or explosive materials, please contact us for special anti-corrosion configuration.)
Summary
Fengyao HN9010P is a heavy-duty automatic pulse industrial vacuum cleaner. Powered by a 9.0KW three-phase turbine blower, it delivers 39KPa strong suction with a 92L large dust tank. It features an online automatic pulse jet cleaning system to remove dust from filters without manual cleaning. Built-in cyclone pre-separation protects polyester membrane filter cartridges which are acid-resistant and washable. The unit supports 24-hour non-stop operation, equipped with pressure relief protection and waterproof industrial plug. It is widely used in machining, shot blasting, foundry and stone workshops to collect metal shavings, steel grit and heavy grinding dust.
