Product Overview

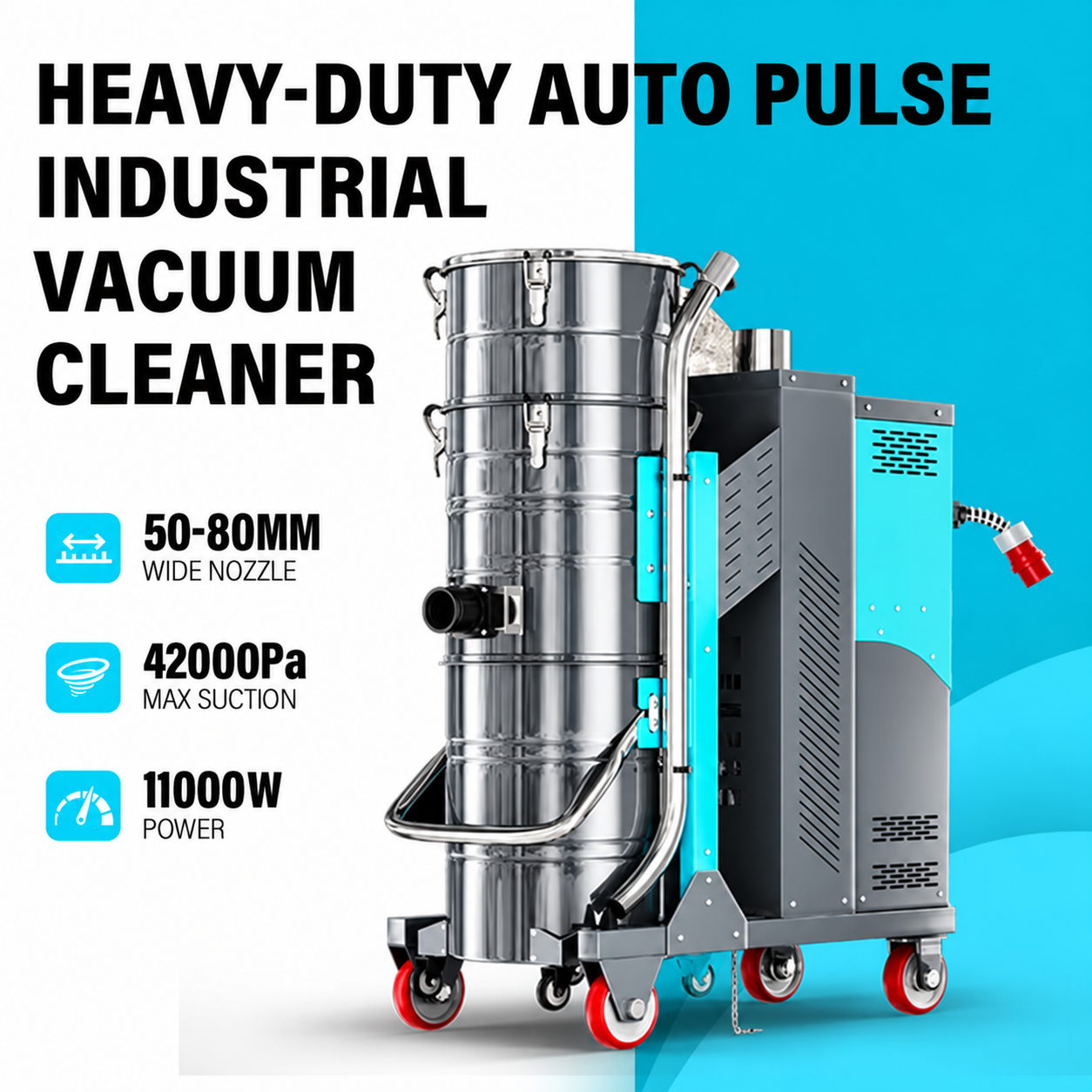

The Fengyao HN1110P automatic pulse industrial vacuum cleaner is the high-power flagship model of the MC series. Powered by a 11kW three-phase turbine motor, it delivers up to 42KPa stable suction for heavy-duty dust and debris collection.
Equipped with digital-controlled auto pulse filter cleaning and built-in cyclone separation, this machine removes dust from filters automatically while working. No need to stop production for manual filter maintenance. It supports 24-hour non-stop operation, perfectly matching continuous production lines.
With a 92L large-capacity tank, it easily handles large volumes of metal chips, abrasive grit, fine powder and heavy industrial dust. It’s widely used in foundry, shot blasting, machining, stone processing and other harsh workshop environments.
Key Features
Automatic Pulse Jet Dust Cleaning System Online pulse blowback cleaning with digitally adjustable pulse interval for automatic circulation. Customizable cleaning parameters to continuously remove dust buildup on filter cartridges. No manual filter disassembly or washing required during operation, improving production efficiency and lowering maintenance cost. Pressure relief device automatically releases pressure under excessive negative pressure to ensure stable equipment operation.
11KW Three-phase High Pressure Turbine Blower Pure copper motor with aluminum alloy housing, fire-resistant and anti-corrosion, low noise. Supports 24-hour continuous non-stop operation, delivers stable 42KPa strong suction to capture heavy metal shavings, steel grit and dense dust.
Cyclone Pre-separation + Polyester Membrane Filter Cartridge Dual Filtration Built-in cyclone separator uses centrifugal force to settle coarse dust and metal debris into the dust tank first, reducing direct wear on filter cartridges. Polyester fiber membrane filter cartridge features good acid & alkali resistance, high filtration efficiency and low resistance. It can be washed and reused repeatedly with outstanding wear resistance and long service life.
Heavy-duty Industrial Safety Design Waterproof industrial plug with high load capacity, prevents electric leakage and stays firmly connected. 92L large-capacity dust bin reduces frequent emptying. Mobile casters allow flexible movement for fixed machine matching or mobile workshop cleaning.
Main Specifications
| Item | Parameter |
|---|---|
| Model | HN1110P |
| Voltage | 380V/50Hz |
| Power | 11 kW |
| Suction | 42 KPa |
| Filter Area | 8.5 ㎡ |
| Inlet Diameter | 50-80 mm |
| Tank Capacity | 92 L |
| Weight | 298 kg |
| Dimension | 1400*650*1600 mm |
Note: Dimensions are measured by hand. Slight deviation may exist, please refer to the actual product.
Product Advantages
- 11kW high power three-phase turbine motor Pure copper winding motor, aluminum housing. It delivers strong stable suction, low noise and heat resistance. Designed for round-the-clock continuous operation without overheating.
- Auto pulse filter cleaning system Set your own pulse interval on the digital control panel. The machine blows dust off the filter automatically during operation. No downtime to take out and clean filters. Extend filter life and keep suction consistent all day. Built-in pressure relief valve protects the unit under extreme negative pressure.
- Cyclone pre-separation structure The internal cyclone separator traps heavy particles first before air reaches the filter. Big debris like steel chips and sand drops directly into the collection tank. This greatly reduces filter wear and cuts your replacement cost.
- Polyester membrane coated filter cartridge The coated filter resists acid and alkali. It has low air resistance and high filtration efficiency. Cartridges can be washed and reused many times.
- Heavy-duty construction & safety design Large 92L stainless steel collection tank, easy to detach and empty. Heavy duty casters support the heavy machine for site movement. Industrial grade plug with good load capacity, waterproof and dustproof, prevents electric leakage risk.
Application Scenarios
Widely used in machining workshops, shot blasting workshops, metal grinding plants, foundries and other heavy industrial sites. Designed to collect iron scraps, steel grit, stone particles, glass fragments and large volumes of industrial dust. Perfect for continuous production line dust collection tasks.
Machining & CNC Shops Collect iron filings, aluminum shavings and cutting fluid mist residuals from CNC machine tools, milling machines and lathes. The 92L tank handles large volumes of fine metal swarf without frequent emptying.
Shot Blasting & Sandblasting Rooms Clean up steel grit, cast iron shot and residual abrasive after blasting operations. The cyclone separator pre-separates heavy grit particles, protecting the filter from abrasion and extending service life.
Grinding & Polishing Workshops Suction up fine metal dust, grinding dust and polishing powder from surface grinding, belt grinding and deburring stations. The auto pulse cleaning system keeps suction stable even when dealing with large amounts of fine dust.
Foundries & Casting Plants Remove foundry sand, casting flash, scale and burnt sand particles around shakeout machines, molding lines and pouring stations. Built to handle hot, heavy and abrasive debris in harsh foundry environments.
Glass Processing Industry Pick up broken glass fragments, glass powder and cullet from cutting, edging and drilling stations. The stainless steel tank and wear-resistant filter withstand sharp glass particles without damage.
Stone & Granite Processing Collect stone dust, granite chips and marble slurry remnants from cutting, grinding and polishing machines. The sealed cart design prevents fine stone dust from escaping back into the air.
Construction & Demolition Clean up cement dust, concrete fragments, sand and mortar residues from renovation and demolition sites. The robust wheeled cart moves easily across uneven workshop floors.
Food & Pharmaceutical Industry (dry dust) Suitable for collecting dry powder, granule residues and bulk dust in food processing, packaging and pharmaceutical production lines where dust-free environment is required. The washable filter meets basic hygiene requirements.
Woodworking & Furniture Factories Suction wood chips, sawdust and sanding dust from cutting, planing and sanding machines. The auto pulse system prevents clogging from fine wood dust.
Chemical & Powder Processing Collect non-corrosive dry powder, granule residues and bulk material spillages from mixing, filling and packaging stations. (Note: for corrosive or explosive materials, please contact us for special anti-corrosion configuration.)
Summary
If you need a robust industrial vacuum for long-hour heavy dust collection, HN1110P is a reliable choice. Its automatic pulse cleaning saves maintenance labor, and the high-power turbine maintains steady suction even under heavy dust loads. Widely adopted in manufacturing, processing and construction industries for stationary and mobile industrial cleaning.
