Product Overview
Fengyao BN7510 Heavy Duty Industrial Vacuum Cleaner is equipped with a 7.5kW 380V motor for tough industrial cleaning jobs.HN7510B is a heavy-duty three-phase industrial vacuum cleaner built for harsh factory cleaning environments. Powered by a 7.5kW 380V turbine blower, it supports 24-hour non-stop continuous operation. This unit reliably collects heavy debris including iron chips, steel grit, glass fragments, stones and large volumes of metal dust.
It adopts built-in cyclone separation, paired with polyester membrane filter cartridge and manual reverse-blow cleaning function. The design reduces filter clogging, keeps stable suction and extends filter service life. The mobile wheel structure allows flexible movement between workstations for heavy-duty cleaning tasks.
Specifications Table - HN7510B
| Item | Parameter |
|---|---|
| Model | HN7510B |
| Voltage | 380V |
| Frequency | 50HZ |
| Power | 7.5KW |
| Suction | 35 kpa |
| Filter Area | 4.2 ㎡ |
| Inlet Diameter | 50 mm |
| Dust Tank Capacity | 76 L |
| Net Weight | 134 kg |
| Overall Dimension | 1250*600*1300 mm |
Note: Dimensions are manually measured, minor deviations may exist.
Material & Core Properties
- Turbine Fan: 3-phase high-pressure turbine fan with pure copper motor, aluminum housing. Good heat dissipation, fire & corrosion resistant, large air volume, low noise, supports 24h continuous running.

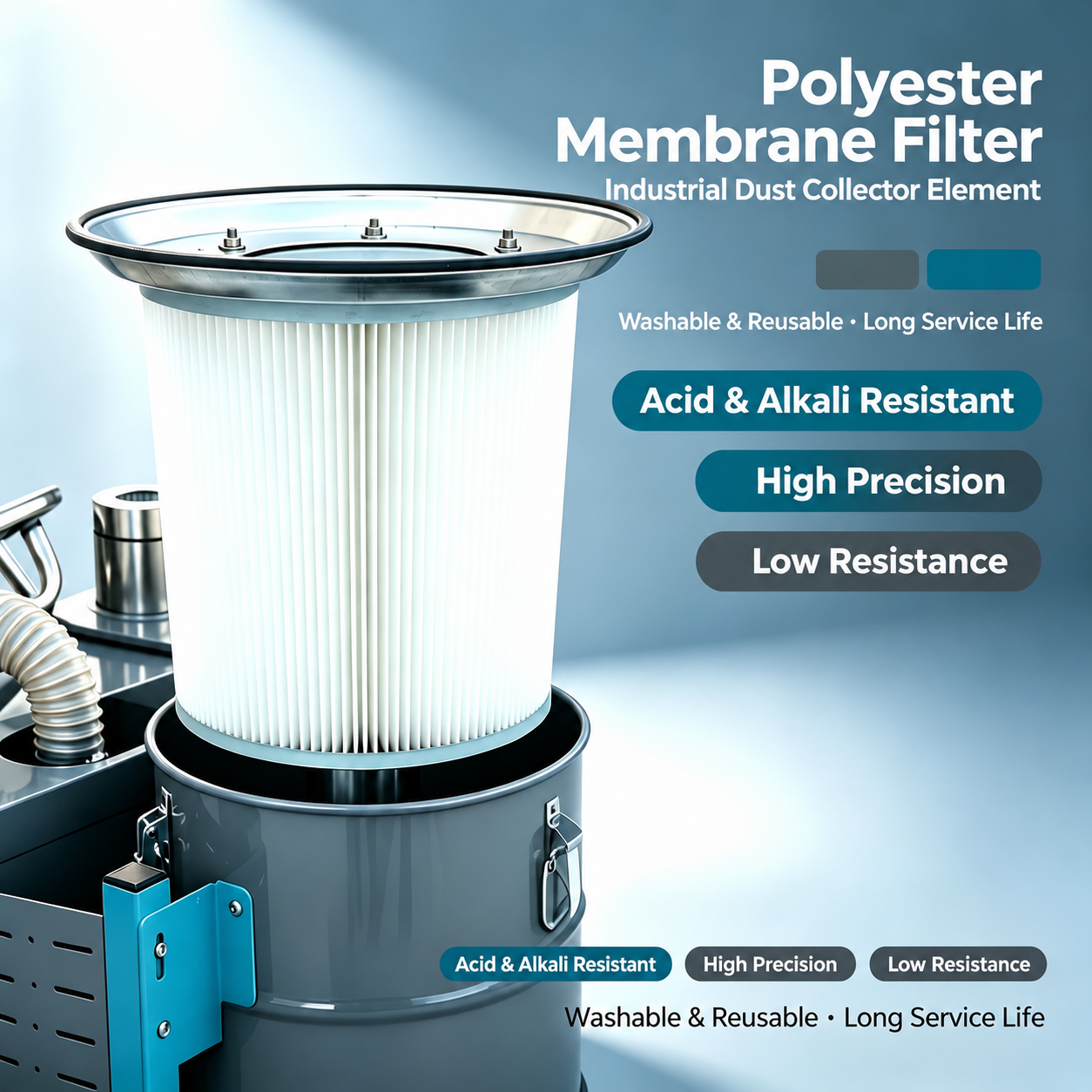

- Filter Cartridge: Polyester fiber coated membrane filter. Acid & alkali resistant, high filtration precision, low flow resistance, wearable, washable & reusable for longer service life.
- Dust Tank: Stainless steel material, sturdy and anti-corrosion.
- Body Housing: Thickened sheet metal + aluminum alloy, impact-resistant for tough factory conditions.
- Power Plug: Industrial heavy-duty plug, waterproof and dustproof, prevents electric leakage during long-hour operation.
Key Features
- 24-hour non-stop continuous operation, perfect for on-line production dust removal
- Built-in cyclone separator. Centrifugal force pre-separates large particles to reduce filter abrasion
- Manual reverse blowing filter cleaning. No need to disassemble filter cartridge, restore suction quickly
- Large high-efficiency filter, 4.2㎡ filter area, high precision filtration to prevent secondary dust pollution
- 3-phase high-pressure turbine pure copper motor, stable strong suction of 35kPa, easily picks up heavy particles
- Wheeled trolley design with heavy-duty casters for flexible movement inside workshops
- Waterproof dustproof industrial plug, effectively avoid electric leakage, safer operation
Standard Accessories
Standard accessories include suction hose, metal extension tubes, floor nozzle and crevice nozzle, for workshop floors, machine gaps and dead corners. Extra filter cartridges, longer hoses and custom nozzles are available upon request.
Application Scenarios
- Metal machining & grinding workshop: iron filings, steel sand, metal cutting dust, grinding waste
- Glass cutting & processing factory: glass fragments and fine glass powder
- Stone processing & construction site: stones, cement dust, sand residue
- Woodworking workshop: wood chips, wood dust and shavings
- Hardware casting & auto parts manufacturing: heavy dust and metal debris
- Production line supporting dust removal & daily large-area workshop cleaning
Factory & Delivery
Equipment is manufactured by our production partner and supplied by Fengyao. Every HN7510B undergoes no-load and load testing before shipment. Ready stock available for fast delivery. Product documents and test reports can be provided, custom solutions are acceptable.
Product Summary
Fengyao HN7510B heavy-duty industrial vacuum is engineered for tough industrial cleaning jobs where ordinary vacuums fail. With strong suction, continuous running capability and protective cyclone filtration system, it is a reliable solution to handle iron chips, steel grit and other heavy abrasive waste in machine shops, foundries and manufacturing facilities.
