Product Introduction
FY-XS580 walk-behind floor scrubber is a battery-powered cleaning machine supplied by Fengyao. It integrates water spraying, floor scrubbing and sewage recovery in one pass. It can replace manual mopping to efficiently remove oil stains, dust and dirt on all kinds of hard floors. Powered by a 24V battery pack, it works without trailing cables. Flexible and reliable, it cuts labor costs and greatly improves cleaning performance for commercial and industrial sites.
The FY-XS580 walk behind hand push floor scrubber is a practical hard floor cleaning machine built for commercial and industrial cleaning work. It completes floor scrubbing, washing and wastewater collection in one single pass. After cleaning, the ground is dry right away without standing water, effectively reducing slip risks for staff and visitors.
Traditional manual mopping takes lots of manpower and time, and can only remove surface dirt while leaving water marks and residual grime. The FY-XS580 floor scrubber solves these problems. It scrubs deep into floor surface to lift oil stains, dust and stubborn dirt, then sucks up all dirty water at the same time. This machine helps cleaning teams cut labor cost and improve overall cleaning quality.
This floor scrubber works on most hard floor types including concrete, epoxy floor, ceramic tile, vinyl and terrazzo. It fits many different working environments such as factory workshops, warehouses, hotel lobbies and hallways, office buildings, restaurants, canteens, supermarkets and exhibition halls.
Scrub, Recover, Dry: One Pass
The FY-XS580 does what a mop can't. The brush lifts dirt off the surface, the squeegee vacuums it up right behind. You walk forward, the floor dries behind you.
No cord. No bucket of grey water being pushed around the same room. One operator, one pass, same result on every shift.
Key Features
3,000 m²/h working efficiency Several times faster than mopping over the same area.

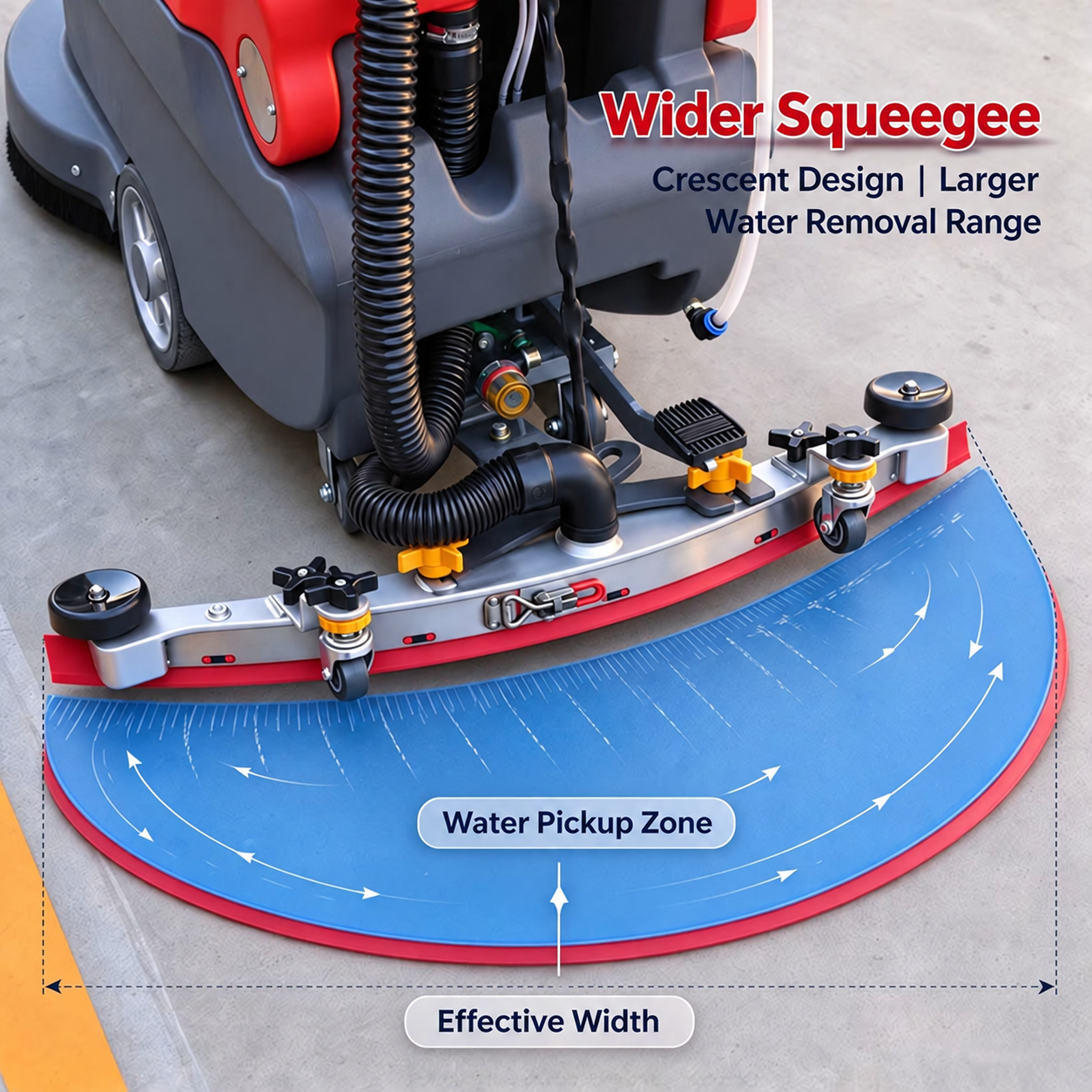

580 mm brush + 830 mm squeegee The squeegee is wider than the brush on purpose. Every drop of wash water gets recovered, including on turns and against walls.
Independent 550 W brush and 500 W vacuum motors Two motors, not one shared drivetrain. Brush speed and suction hold steady from a full tank to an empty one.
45 L clean / 55 L recovery The recovery tank is the bigger one, which is the number that decides how long you can stay out there. Fewer stops to dump. Fewer refills. More floor per shift.
24V battery powered, no cord Nothing trailing behind the machine. Safer around customers, pallet racking and doorways, and no cable to trip over in a busy aisle.
80 kg, 1260 × 830 × 970 mm Clears a standard single door. Fits an elevator. Loads into a small van, so one crew can cover several sites in a day.
Key Specifications
| Item | Parameter |
|---|---|
| Model | FY-XS580 |
| Voltage | 24V |
| Cleaning Width | 580mm |
| Squeegee Suction Width | 830mm |
| Cleaning Efficiency | 3000 m²/h |
| Vacuum Motor | 500W |
| Brush Motor | 550W |
| Fresh Water Tank | 45L |
| Waste Water Tank | 55L |
| Net Weight | 80kg |
| Overall Dimension | 1260*830*970 mm |
* Dimensions are measured by hand. Slight deviation is possible; the actual product prevails.
Product Core Advantages
One pass cleaning and instant drying
This floor scrubber completes scrubbing, washing and sewage suction at the same time. The rotating brush deeply removes surface dust, ground dirt and light oil stains. The rear squeegee tightly fits the floor to collect all sewage thoroughly. There is no need for secondary mopping or waiting for air drying. The floor becomes clean and dry instantly, avoiding wet floor risks and improving site safety.
Large capacity dual tank design for continuous work
Equipped with 45L clean water tank and 55L waste water tank, the machine extends continuous working time effectively. It reduces frequent water refilling and sewage draining during cleaning. For large area cleaning tasks such as factory workshops and shopping malls, cleaning staff can finish more work in one single round without repeated interruptions, greatly improving overall cleaning efficiency.
Stable power system with strong cleaning performance
Adopting mature 24V low voltage power configuration, the machine is equipped with 550W brush motor and 500W suction motor. The brush motor provides stable and powerful friction to remove stubborn dirt, floor sediment and oil contamination that cannot be cleaned by manual mopping. The suction motor maintains lasting and stable water absorption, ensuring no water leftover on the floor after cleaning. The whole power system runs smoothly with low failure rate and adapts to long term high frequency commercial use.
Lightweight hand push and easy operation

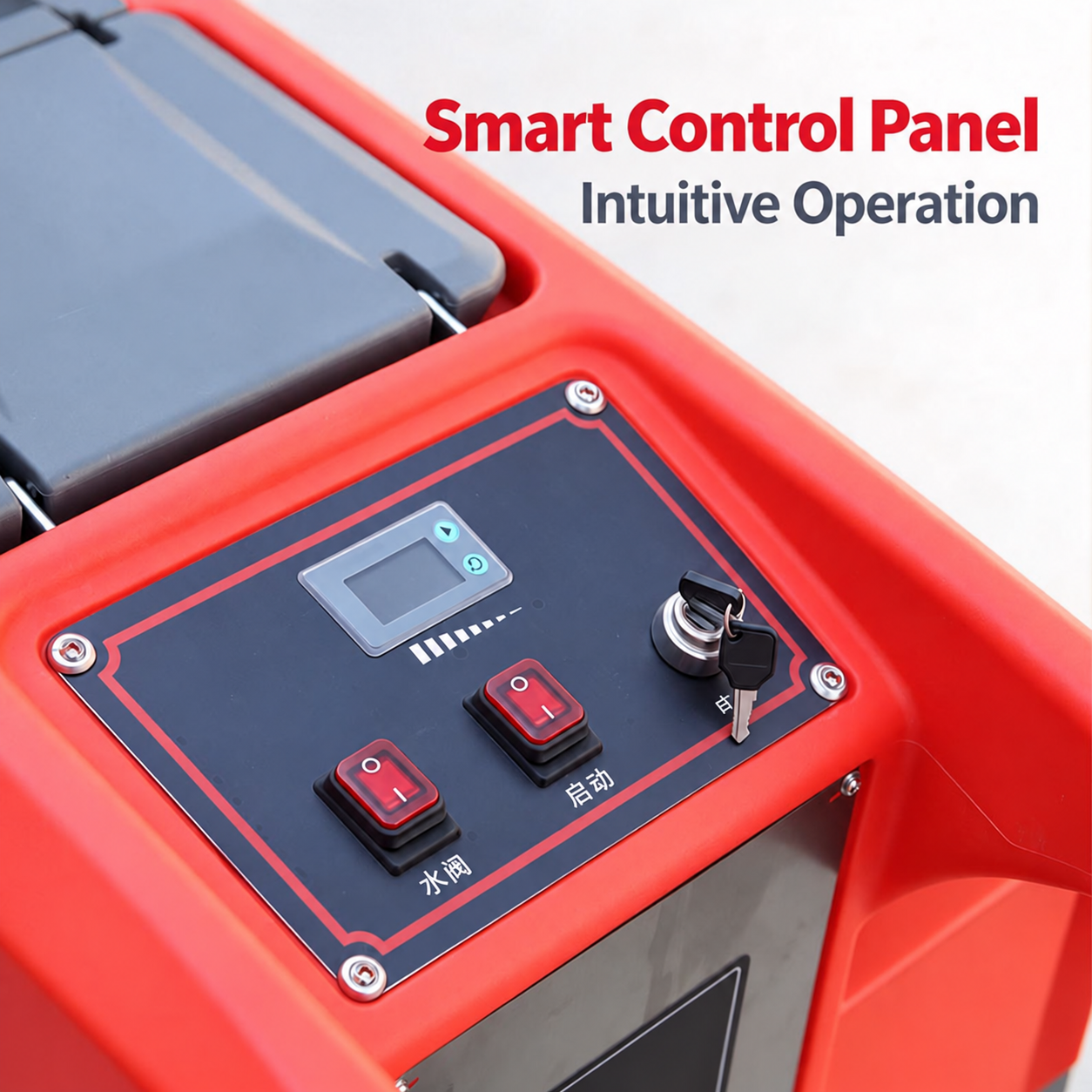

The machine features a humanized hand push structure with flexible steering and low pushing resistance. The compact body can pass through standard doorways and narrow aisles freely. The height adjusted handle ensures comfortable operation for long time work. The control setting is simple and straightforward. New operators can master the whole operation quickly with no professional training required, lowering the usage threshold for cleaning teams.
Durable structure and low maintenance cost
The whole machine adopts thickened and impact resistant body materials, which can adapt to complex on site working conditions. The cleaning brush is highly wear resistant and keeps stable cleaning performance after long term use. The flexible squeegee blade fits uneven floors perfectly to guarantee consistent water suction effect. All core accessories are standard and universal, making daily inspection, maintenance and part replacement simple and cost saving.
Application Scenarios
Factory Workshop and Warehouse
Industrial floors such as concrete and epoxy floors are easy to accumulate dust, workshop debris, sediment and oil stains during daily production and storage. Manual cleaning is inefficient and cannot achieve thorough cleaning results. The FY-XS580 effectively removes industrial dirt and oil residues, keeps the workshop floor flat and clean, meets factory environmental standards and improves the overall working environment.
Hotel and Hospitality Venues
Hotel lobbies, corridors and public areas mostly use tile and terrazzo floors which require high cleaning quality and surface gloss. This floor scrubber cleans evenly without leaving water marks or scratches. It effectively removes footprints, dust and daily stains, keeping the floor bright, tidy and dry. It helps hotels maintain a high end and clean environment and improve guest experience.
Office Building Public Areas
Office areas have large pedestrian flow, and floors are prone to dust accumulation and footprint marks. Traditional mopping easily affects daily office work and leaves damp floors. The FY-XS580 cleans quickly with high coverage, removing daily dirt without disturbing office order. It keeps public halls, corridors and elevator areas clean, fresh and comfortable all day long.
Supermarket Shopping Mall and Exhibition Hall
High traffic commercial venues require frequent and efficient cleaning. With 3000 square meters per hour high efficiency, the FY-XS580 quickly completes large area cleaning during non peak hours. It adapts to tile, vinyl and terrazzo floors, removes daily dust and stains, and maintains a clean and tidy shopping and exhibition environment to support long term commercial operation.
